Wafer-Level Packaging

The future of semiconductor manufacturing
Request More Information

Next Generation Advanced Packaging Technology

Brewer Science is revolutionizing wafer-level packaging with innovate bonding and debonding technologies. Our diverse set of high-performance materials allow for higher throughput, reduction in form factor, and lower cost. We work with leading equipment vendors to provide fully automated solutions for high-volume needs.

Bonding Materials

Learn More

Debonding Technology

Learn More

Build-Up Materials

Learn More

What is Wafer-Level Packaging?

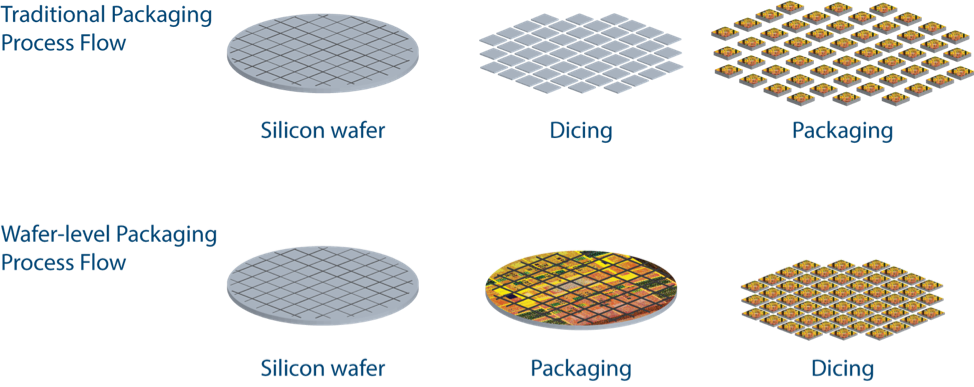

Wafer-level packaging (WLP) is the technology of packaging the die while it is still on the wafer—protective layers and electrical connections are added to the substrate before dicing. Originally, wafers were diced into individual chips, then packaged. Utilizing WLP technology allows chips to continue to reduce in size, streamline manufacturing, and provide easier ways to test chip functionality.

The Need for Temporary Bonding and Ultrathin Wafers

To create new stacked designs, manufacturers must find ways to thin their device wafers before performing complex back-end processes. Using temporary bonding techniques in which the wafer is attached to a stable carrier without disrupting back-end processes can overcome this problem.

Benefits of Ultrathin Wafers

More than Moore

Moore’s Law originally stated that the number of transistors would double every two years. However, the timeline has increased to 18 months. Moore’s Law has proven useful in the semiconductor industry as a way for companies to guide long-term planning and set targets in research and development.

Since physical limitations to transistor scaling is being reached, moving beyond Moore’s Law has become a necessity. More-than-Moore Technology (MtM) focuses on creating new technological possibilities with unlimited application potential through research and development past already conventional methods.

Benefits of MtM

  • Quicker time to market
  • Lower cost
  • Improved performance
  • Reduced size and space
  • More flexibility

Carrier Rework

FOWLP

PGMEA Resistant

High-Vacuum CVD/PVD

CVD/PVD

Grind to 30μm

Grind to 50μm

Grind to 100μm

< 200°C

200-250°C

250-300°C

> 300°C

Laser

Chemical
Release

Thermal
Slide

Mechanical

Click on the wheel to display Brewer Science products

  • Click on a debond method
  • Click on a thermal stability
  • Click on a backside process

Advanced Packaging Material Solutions:

Find the material that best fits your needs

Click on the wheel to display Brewer Science products

  • Click on a debond method
  • Click on a thermal stability
  • Click on a backside process

= Selected
= Debond Method
= Benefits
= Maximum Process Temperature
= Additional Options
= Backside Process
= Not Available

Brewer Science + Advanced Packaging

Brewer Science has been using its materials expertise in the semiconductor industry to change the way the world looks at advanced packaging for over 10 years. With collaboration from our research & development and applications groups we have become one of one of the largest advanced packaging knowledge centers in the world; creating the largest portfolio of products in the industry.
